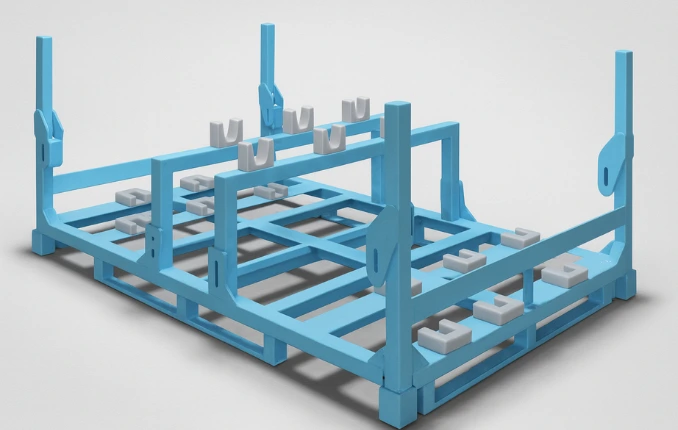

Line Feed Pallets Manufacturer in Pune

Sunex makes Line Feed Pallets that are made just for OEM assembly stations, component feeding, and process-line synchronisation in automotive, HVAC, electronics, and industrial manufacturing plants.
These pallets make sure that parts are in the right place, that loading cycles may be repeated, and that movement patterns are streamlined. This makes sure that stuff flows smoothly from the warehouse line workstation to the next step.
Our line-feed pallets are made to fit the geometry of each customer's components, the weight of the load, and the arrangement of the line. They are made using MS IS2062-grade constructions, precise jigs, and coatings that resist corrosion.

Technical Specifications :

  • 1. Main structure of MS IS2062 Grade A/B
  • 2. Sheet metal parts cut with a CNC machine
  • 3. Joints and reinforcement ribs that are MIG welded
  • 4. Optional SS304 for parts that will be exposed to corrosion
  • 5. HDPE, ABS, and PP inserts to protect parts

  • 1. 60–80 microns for industrial powder coating
  • 2. Optional zinc plating for places where rust is likely to happen
  • 3. Optional PU coating for better resistance to chemicals

  • 1.Light Duty: for minor assemblies and trimmings
  • 2. Medium Duty: for HVAC units and sub-assemblies
  • 3. Heavy Duty: for parts made of metal and engine assemblies

  • 1. Made for stackers, pallet vehicles, and forklifts
  • 2. Optional base with castor wheels for moving by hand
  • 3. Guided channels for compatibility with conveyor lines

Safety rules and standards :

  • 1. EN 1757-3 (Safety for industrial pallets and trolleys)
  • 2. OSHA's rules about how to handle things safely
  • 3. EN 13155 (Load handling attachments—important for hoisted pallets)
  • 4.ISO 9001:2015 (Quality management that has been certified by Sunex)

  • 1.Radiators / condensers
  • 2. CRFM units
  • 3. Plastic assemblies
  • 4. Machined metal sub-assemblies

  • 1. Condenser coil handling
  • 2. Indoor/outdoor unit feeding
  • 3. Compressor and assembly movement

  • 1.PCB frames
  • 2.Plastic moulded parts
  • 3. Motor assemblies

The Process of Making -

1. CAD/CAM Design and Validation
  • Modelling in 3D
  • Checks for interference with component geometry
  • Analysis of DFM (Design for Manufacturing)
2. CNC and making things
  • Cutting with a CNC laser
  • Forming sections and bending
  • Using jigs to regulate tolerances in MIG welding
3. Finishing the surface
  • Chemical pre-treatment
  • Powder coating with a thickness that can be regulated (60–80 microns)
4. Putting together and checking
  • Installing the nest
  • Testing for fit
  • Testing the load
  • Final quality control that follows ISO standards
Why Choose Us

Why choose Sunex for line feed pallets?

Engineering Precision of OEM Quality
  • Every pallet is made to match accurate alignment and manufacturing takt-time needs.
Material engineering that works
  • Using IS-grade steel, high-quality inserts, and tested fasteners makes sure that it works.
Each part can be changed to fit your needs
  • Every design is made to fit perfectly, from engine parts to plastic trims
Very durable when used in continuous cycle operations
  • Made to last through thousands of assembly-line cycles.
